Liverpool Lime Street — Before the Station

Before Lime Street was in the centre of Liverpool

It can be difficult to picture today, but the area around modern Lime Street was once close to the edge of the built-up town. Eighteenth-century Liverpool was expanding rapidly because of its port, but the compact town still clustered much closer to the river than the city we know today. The higher ground east of the old centre remained comparatively open. Windmills took advantage of that exposed position. A surviving account from 1790 even records an accident at a mill described as being near Limekiln Lane, showing that the name was already in use around the time the modern street was emerging. Historic descriptions of the area identify several windmills around what would become Lime Street and its approaches. One eighteenth-century depiction shows four of them. Among them were names such as White Mill and Tyrer’s Mill. Tyrer’s was particularly unusual. It was described as a wooden peg mill that could be turned so its sails faced the wind. This was not yet the grand Victorian approach to Liverpool. It was a working landscape on the outskirts of the town.

Why is it called Lime Street?

The answer has nothing to do with lime trees. The name comes from lime kilns. Lime was an essential material in the eighteenth-century building trade. Limestone was heated intensely in kilns to produce quicklime, which could then be processed for use in mortar, plaster and other building work. As Liverpool expanded and construction accelerated, demand for lime grew with it. Local historical accounts associate the Lime Street kilns particularly with businessman William Harvey. The road became known as Limekiln Lane. By around 1790 the street itself was being formally laid out, but at that time it still stood outside the heart of Liverpool. The kilns would eventually disappear. The name did not. Even after the industry that created it had gone, Lime Street remained.

Smoke, smells and an expanding town

Industrial activity that made sense on the edge of Liverpool became less welcome as the town spread towards it.

The kilns produced smoke and fumes.

By the beginning of the nineteenth century, the nearby infirmary was reportedly complaining about the nuisance they caused.

That is a small but revealing moment in Liverpool’s expansion.

The town was effectively catching up with industries that had originally been established beyond its crowded centre.

The kilns were moved.

The open land was steadily developed.

And the street that had once been on Liverpool’s fringe was beginning to find itself swallowed by the growing town.

Then came something that would change Lime Street completely.

The railway.

Liverpool already had a railway station

When the Liverpool & Manchester Railway opened on 15 September 1830, its Liverpool passenger terminus was not at Lime Street. It was at Crown Street, near Edge Hill.

The Liverpool & Manchester Railway was revolutionary, but Crown Street quickly revealed a problem.

It was too far from Liverpool’s commercial centre.

Passengers arriving from Manchester were still some distance from the docks, offices, exchanges, hotels and businesses that had brought many of them to Liverpool in the first place.

The railway had reached Liverpool.

But not quite far enough into Liverpool.

Within a remarkably short time, plans were being developed to bring trains much closer to the heart of the town.

In 1831, engineers were already examining a new route from Edge Hill towards a central terminus at Lime Street.

It would require one of the most impressive pieces of railway engineering of the period.

Building a railway beneath Liverpool

The route between Edge Hill and Lime Street could not simply run across the surface. Liverpool was already growing across the land above it. The solution was a long railway tunnel descending towards the new terminus.

The Lime Street tunnel measured approximately 2,230 yards — around 1.27 miles — in length. A contemporary railway guide published shortly after it opened described it as around 25 feet wide and 17 feet high. The same contemporary account placed its cost at about £150,000 — an enormous investment in the 1830s.

Work on the new Lime Street terminus began during the 1830s. This was not simply another station. Liverpool was effectively boring a new railway entrance beneath part of the town.

And there was another problem.

The gradient.

Trains did not originally steam into Lime Street

The railway between Edge Hill and Lime Street descended too steeply for the operating methods used when the station first opened.

So early passengers experienced something rather extraordinary.

Approaching Liverpool, the locomotive stopped at Edge Hill.

It was detached from the passenger carriages.

The carriages then descended through the tunnel towards Lime Street largely under gravity, their speed controlled by railway staff using brakes.

Going the other way was even more dramatic.

Carriages leaving Lime Street were hauled uphill through the tunnel by rope using stationary steam engines at Edge Hill.

The arrangement seems almost unbelievable when compared with the electric trains using Lime Street today.

But it worked.

For decades, passengers entering one of Britain’s most important railway cities completed the final part of their journey without a locomotive attached to their train.

The rope-working system remained in use until the nineteenth century was already well advanced.

15 August 1836 — Lime Street becomes a railway station

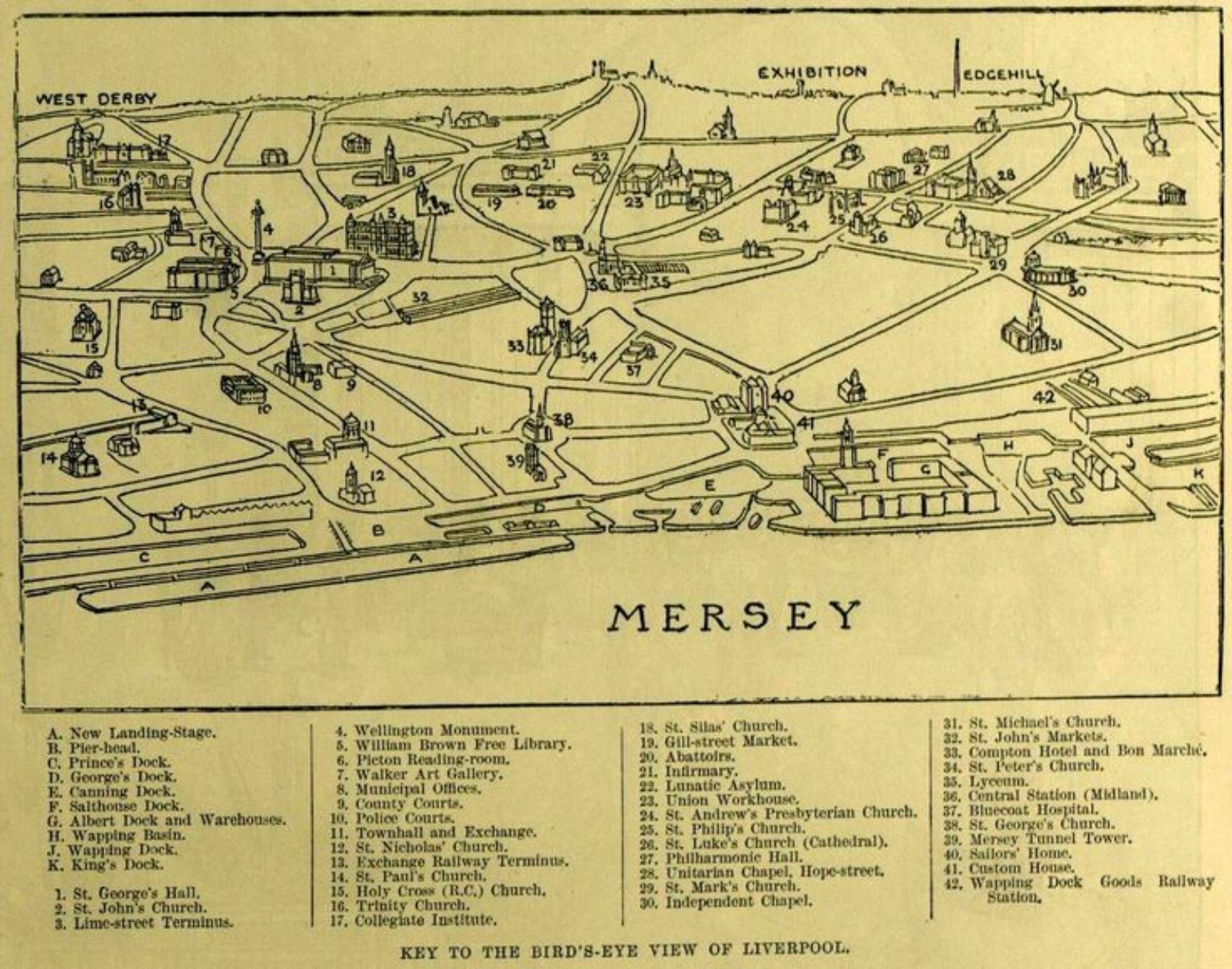

Liverpool Lime Street station opened to passengers on 15 August 1836. It replaced Crown Street as the Liverpool & Manchester Railway’s principal passenger terminus in the city. The original station was far smaller than the one we know today. Its frontage included four large gateways and the first facilities were relatively modest by the standards of the vast Victorian railway complex that later occupied the site. But its location changed everything. The railway had been pulled closer to Liverpool’s commercial heart. A street named after long-departed lime kilns suddenly became one of the most important arrival points in the town. Liverpool’s geography began to reorganise itself around the railway.

From edge of town to front door of the city

The transformation of Lime Street during the nineteenth century was extraordinary.

When the street emerged around the end of the eighteenth century, this had been an area of kilns, mills and open ground.

Within decades, it was becoming one of Liverpool’s great civic spaces.

Across from the station rose St George’s Hall, opened in 1854.

Its vast classical façade turned the Lime Street area into a monumental civic centre.

The station itself could not remain in its original form.

Railway travel exploded during the Victorian period.

More passengers, longer trains and expanding national connections meant the 1836 terminus was soon inadequate.

Major rebuilding followed.

The station that developed during the second half of the nineteenth century was substantially different from its modest predecessor.

Great iron-and-glass train sheds eventually covered the platforms.

The railway landscape expanded.

And beside the station rose the grand North Western Hotel, reinforcing Lime Street’s position as the place where visitors arrived in Liverpool.

A street that had once been outside the town had become its front door.

The railway changed more than transport

The arrival of Lime Street station affected far more than railway journeys.

Hotels, pubs, shops, theatres and entertainment venues flourished around the constant movement of passengers.

For visitors arriving from elsewhere in Britain, Lime Street often became their first impression of Liverpool.

Step out of the station and Liverpool immediately presented itself.

St George’s Hall.

The city centre.

The theatres.

The hotels.

And beyond them, the commercial streets and docks of one of the world’s great ports.

The railway had turned what was once peripheral land into prime urban territory.

Yet the old Lime Street never completely disappeared

The old station disappeared beneath later reconstruction; the tunnel was altered dramatically, with sections opened out; windmills, lime kilns, roperies, Victorian buildings and some twentieth-century cinemas vanished. But the oldest piece survives in the street name: Lime Street. Two ordinary words preserving the memory of an industrial landscape that existed before the railway made the name famous.

A street that tells Liverpool’s story

Few places demonstrate Liverpool’s transformation as clearly as Lime Street.

In the eighteenth century it stood close to the expanding town’s edge.

There were windmills turning above the ridge and kilns producing material for a Liverpool that was building at extraordinary speed.

By the 1830s, engineers were driving a railway tunnel beneath the landscape.

By the middle of the nineteenth century, St George’s Hall had risen opposite the station.

And by the later Victorian period, Lime Street had become one of the great railway approaches of Britain.

Agricultural edge.

Industrial workplace.

Railway terminus.

Civic centre.

Entertainment district.

Gateway to Liverpool.

All on essentially the same stretch of ground.

The next time you walk out of Lime Street station, it is worth looking beyond the trains and traffic.

Because beneath one of Liverpool’s busiest streets is another Liverpool entirely.

A place of windmills, smoke and lime kilns.

The Liverpool that existed before the station.
